Custom Small Commercial Walk-In Freezer and Cold | RFQ Sourcing Details

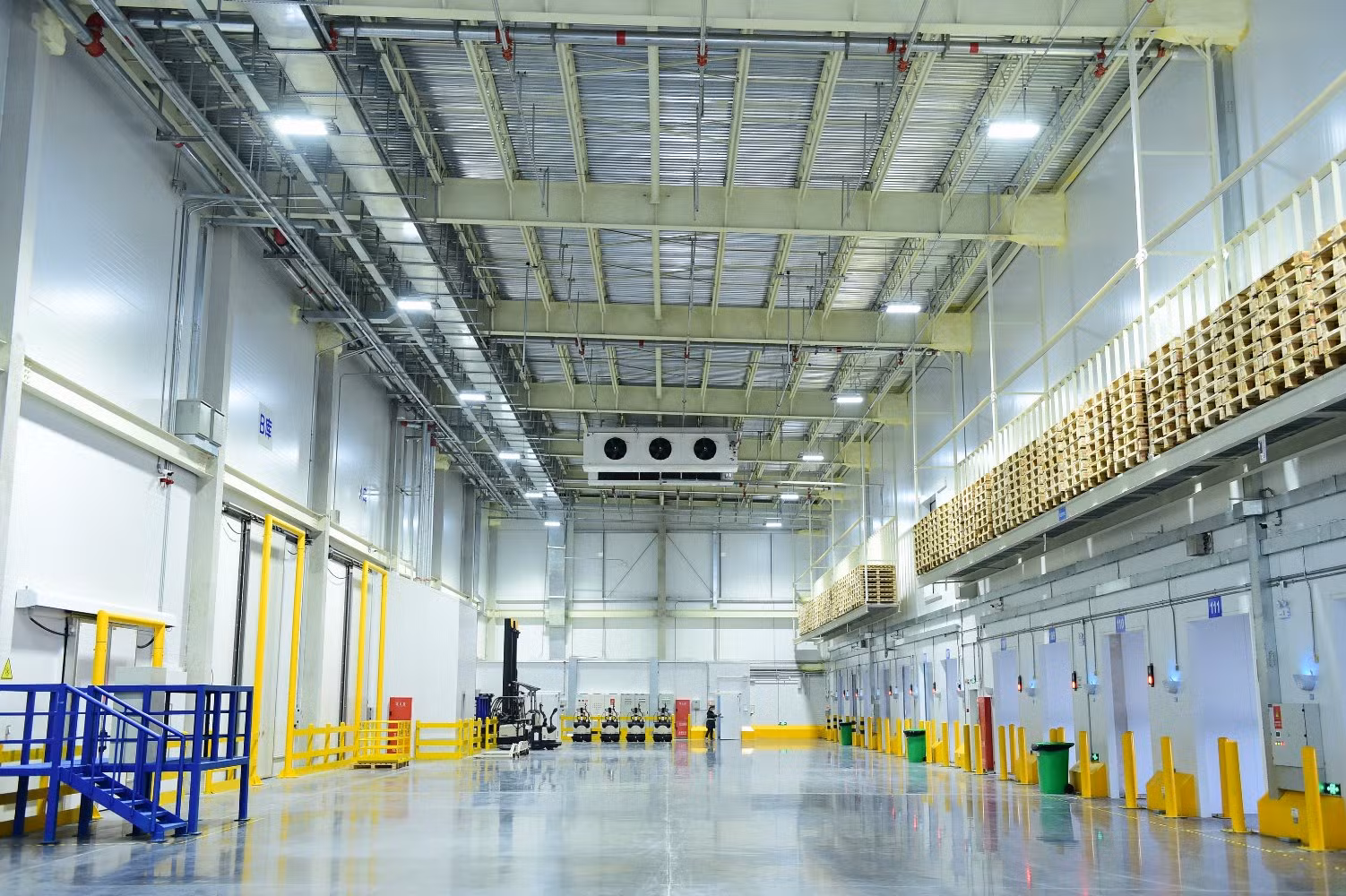

This custom-sized walk-in cold room is designed for commercial or industrial temperature-controlled storage. Listed uses include seafood, fish, meat, fruit, vegetables, food, beverages, medicine, warehousing, restaurants, and cold-chain logistics.

The system can be configured as chilled storage, a freezer room, or a blast-freezing room according to the required operating temperature.

Supported configuration details The listed service-temperature range is -40°C to +20°C, while individual sections also describe door configurations for cold rooms operating from -45°C to +50°C.

Example temperature bands include 10°C to 15°C for processing or controlled-temperature areas, 0°C to 10°C for precooling and preservation, -15°C to -30°C for frozen storage and cold-chain logistics, and -30°C to -40°C for quick-freezing applications.

Available enclosure options include PUR panels faced with color-coated steel, galvanized steel, or stainless steel sheet. Listed panel thicknesses are 50, 75, 100, 120, 150, 175, 200, and 250 mm, with a stated density of 42 kg/m³.

Door choices include hinged, sliding, and double-swing arrangements, with manual or electric control and customized openings. Listed door features include a safety lock, escape system, electric heating wire, and anti-frost provisions.

Refrigeration configurations may use air-cooled, water-cooled, or evaporative-cooled systems. The condensing-unit section lists compressor capacities from 3 HP to 50 HP and above, along with several compressor options. Refrigerants listed for configuration are R404A, R507A, R22, and R717.

Power-supply options are 220 V, 380 V, 440 V, and 460 V. A digital controller, evaporator, copper piping, insulation piping, valves, wiring, LED light, switch, and selected installation accessories are also listed.

Procurement questions to confirm Before ordering, confirm the required internal dimensions, usable storage capacity, target product temperature, pull-down requirement, ambient conditions, daily loading pattern, door type and opening size, panel facing and thickness, available electrical supply, cooling method, refrigerant, compressor selection, controller, and exact accessory package.

Buyers should also request a project-specific equipment schedule and verify which components, documentation, installation work, commissioning services, and after-sales terms are included.

The supplied information contains different temperature and warranty statements, so the final operating range and warranty duration should be recorded explicitly in the purchase specification.
