CP Series Customizable Horizontal Plate Air-Coole | RFQ Sourcing Details
Commercial Refrigeration · Quote on request
This is a product procurement detail page: check specs, images, category context and related sourcing paths before sending an RFQ.
Product specs
Buyer's Digest
Use this page as a product-first sourcing checkpoint before sending an RFQ. Category: Commercial Refrigeration. Confirm application fit, capacity, materials, destination, lead time and compliance requirements before comparing suppliers.
Original product description
The CP Series is a horizontal plate air-cooled refrigeration condenser designed for commercial and industrial installations requiring high heat exchange. The stated equipment pairing includes remo the top.
Supported construction details include a powder-coated galvanized-steel enclosure in silver-gray RAL 9006, aluminum heat-exchanger side sheets, internally threaded copper tubes, and corrugated fins made from hydrophilic aluminum foil.
The coil uses 9.5 mm tubes arranged on 25 × 21.65 mm triangular spacing, with 2.1 mm fin spacing. The fan section can be configured with fans in one or two rows. Available external-rotor fan diameters are 500 mm and 630 mm, with four-pole and six-pole motor configurations.
The stated standard electrical supply is three-phase 380 V at 50 Hz. The published model table covers heat-exchange ratings from 16 kW to 166.2 kW. These ratings are based on 25°C inlet air, 40°C condensing temperature, a 15 K temperature difference, and R404A refrigerant.
Listed airflow values range from 4,400 to 47,000 m³/h, while stated sound-pressure values range from 46 to 62 dB(A), measured at 10 meters. Actual selection must follow the individual model data and the intended operating conditions. Product test pressure is stated as 32 bar.
Refrigerants identified as compatible include R404A, R507A, R449A, R134a, and R22. Because customization is available, buyers should request a model-specific technical schedule rather than treating the full series range as one fixed configuration.
Procurement questions to confirm: Ask the seller to size the condenser against the required refrigerant, heat-rejection duty, ambient design temperature, condensing temperature, allowable sound level, and available electrical supply.
Confirm the exact CP model, fan count and arrangement, motor pole count, coil volume, airflow, power input, current, inlet connection, outlet connection, enclosure color, overall dimensions, mounting clearances, and shipping package.
Buyers should also confirm whether correction factors are required for operating conditions that differ from the published R404A rating point. Warranty coverage is not stated in the supplied product information and should be established before ordering.
CP | Applications and Buyer Notes
CP is organized as a sourcing-ready Commercial Refrigeration reference. The page combines visible product or company data with structured procurement cues so buyers can compare application fit, specifications, quantity, quality requirements and lead-time quest
Applications
- Initial shortlist building for related product or supplier options.
- Specification and application fit review before bulk purchasing.
- Category, keyword and detail-page comparison before sending an RFQ.
Key specifications
- Category
- Commercial RefrigerationBased on visible page data; confirm exact value in the RFQ.
- Unit
- setBased on visible page data; confirm exact value in the RFQ.
- Fins
- Corrugated hydrophilic aluminum foil, 2.1 mm spacingBased on visible page data; confirm exact value in the RFQ.
- Enclosure
- Powder-coated galvanized steel, silver-gray RAL 9006Based on visible page data; confirm exact value in the RFQ.
- Customization
- AvailableBased on visible page data; confirm exact value in the RFQ.
- Fan diameters
- 500 mm or 630 mm, depending on modelBased on visible page data; confirm exact value in the RFQ.
- Motor options
- Four-pole or six-pole, depending on modelBased on visible page data; confirm exact value in the RFQ.
- Test pressure
- 32 barBased on visible page data; confirm exact value in the RFQ.
Buyer tips
- State quantity range and split-delivery needs before price comparison.
- Add certification, material or inspection standards when they affect acceptance.
- For time-sensitive projects, include target arrival date and destination.
- For special applications, describe operating condition, installation environment and duty cycle.
FAQ
What should buyers confirm first?
Confirm application, specification, quantity, destination and lead-time requirements before comparing offers.
Can buyers inquire when specs are incomplete?
Yes. Add model, material, size, use case and inspection needs in the RFQ to make replies comparable.
How should this listing be evaluated?
Check title, category, specifications and related keywords against the actual sourcing requirement.
Source mix: ugc
Key specifications
Product sourcing keywords
These terms come from the title, visible copy and specifications, and link into matching aggregate pages.
Continue from this detail page into sourcing structure
These links connect the detail page back to category hubs, procurement aggregates and knowledge pages so new inventory is not isolated.
This URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 10 600 Tons 200ton Cross Flow Low Noise Wet Closed Circuit Loop System Cooling Tower For Induction FThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 135l 530l Curved Glass Door Chest Freezer BetfisThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 1500kg 1 5t Automatic Large Volume Commercial Refrigeration Equipment Compact Flake Ice Maker For LaThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 15t 24h Fast Cooling Commercial Industrial Flake Ice Machine For Fish Cement Flake Ice Machine AndThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 2 5m Cold Room For Fruit And Vegetable Meat Cold Room Panels Big Capacity Commercial Supermarket RThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 380l 680l Double Door Deep Chest Freezer BetfisThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Hvac Units And Heat Pumps categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Hvac Equipment Suppliers sourcing pathThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Commercial Refrigeration categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Compressors Condensers And Parts categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Ventilation And Air Treatment categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Cold Room Equipment Exporters sourcing pathThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Commercial Refrigeration Manufacturers sourcing pathThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
FNH-29/100 Custom Air-Cooled Copper-Tube Condenser for Commercial Refrigeration SystemsRequest Quote

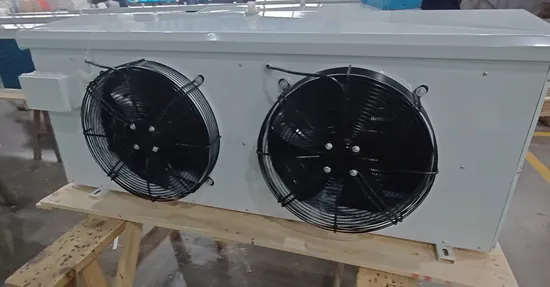

Customizable High Airflow Air Cooler Evaporator for Industrial and Commercial Refrigeration - Air-CoRequest Quote
KCFP Air-Cooled Piston Condensing Unit for Medium-Temperature Cold RoomsRequest Quote
Arriart Refrigeration Equipment Commercial Curved Glass Cake Bakery Display Showcase for Bread StoreRequest Quote

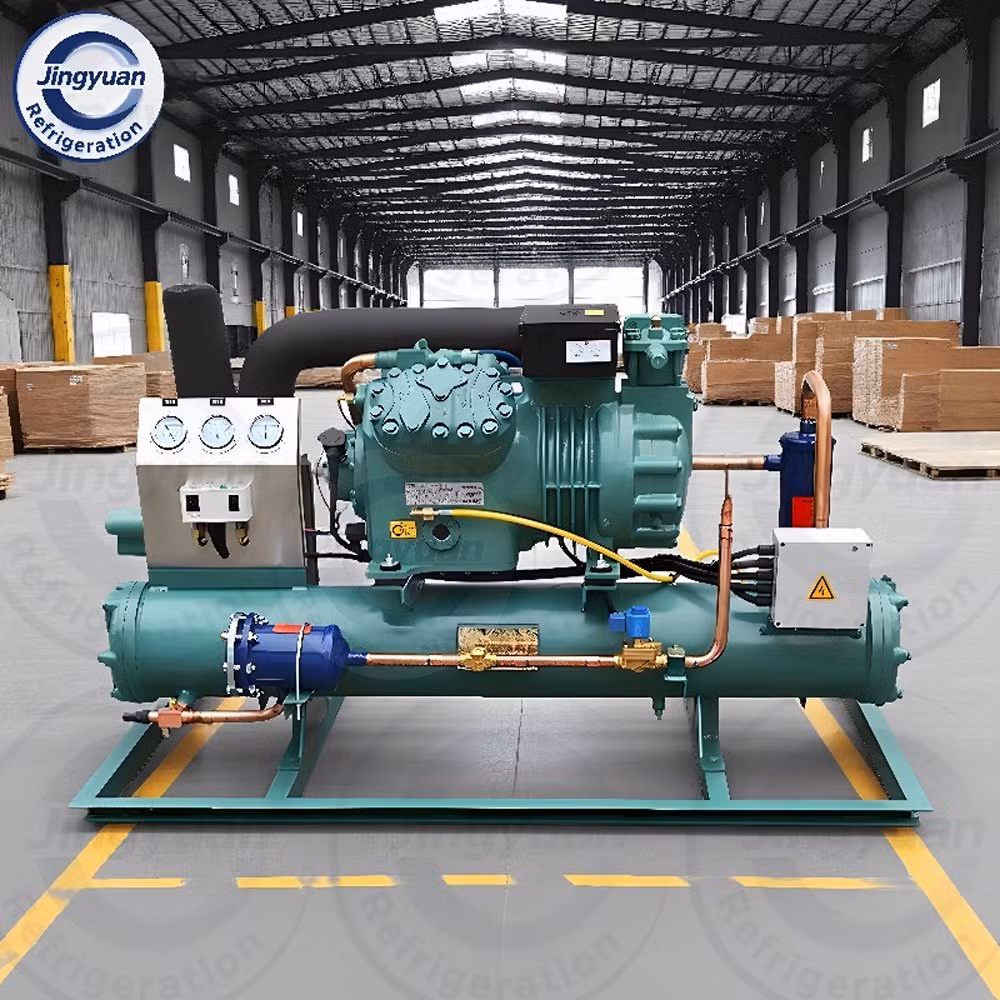

Customized Water-Cooled Semi-Hermetic Piston Refrigeration Condensing UnitRequest Quote
